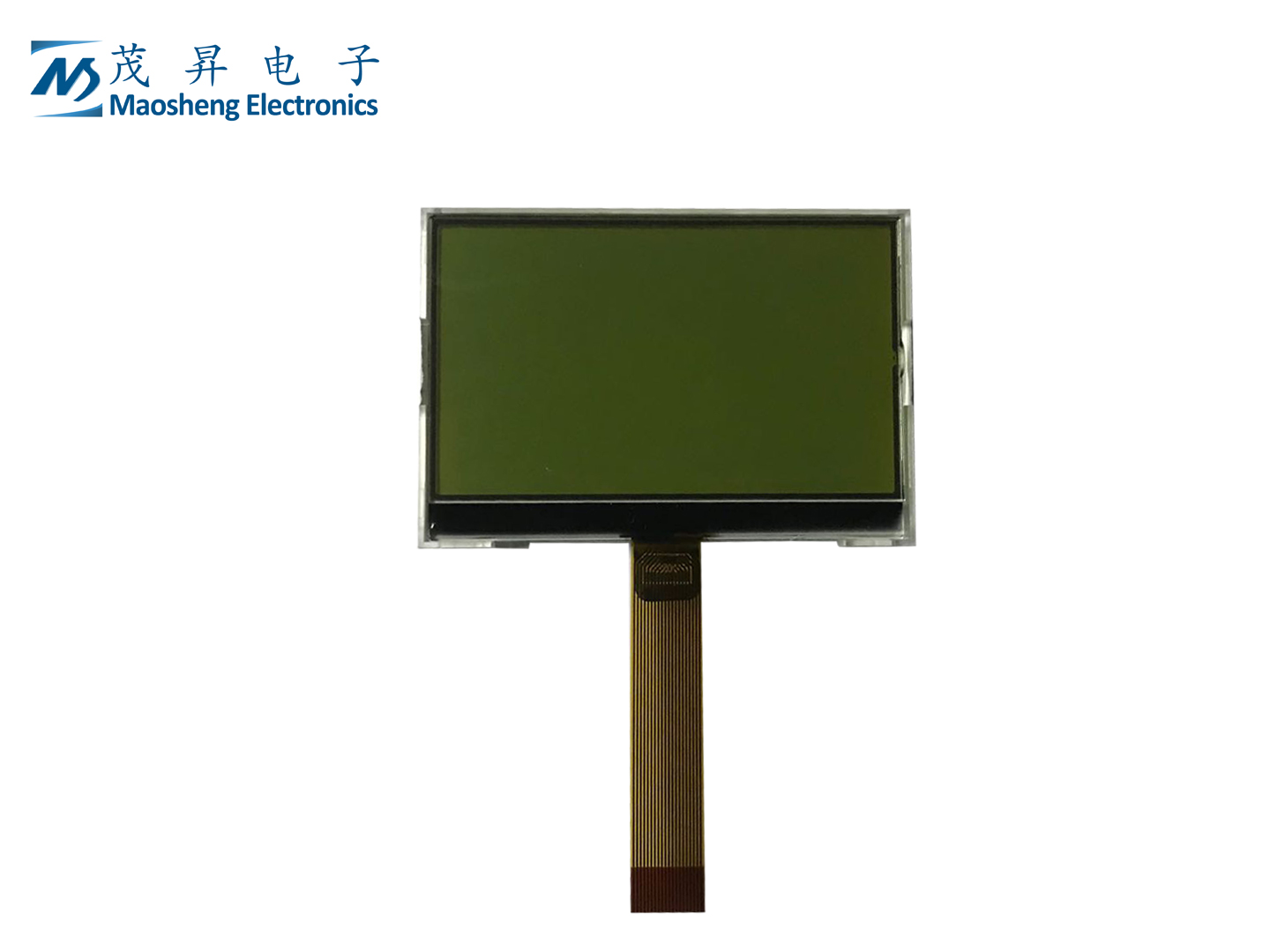

[MS12864GF3A] 128X64 Dots Graphic Matrix LCD

Item

Contents

Unit

LCD type

FSTN POSITIVE/NEGATIVE

-

Viewing direction

6:00

O’Clock

Module size (HxWxT)

71.30x48.20x5.30 (excluded FPC length)

mm

Viewing area (HxW)

66.50x38.00

mm

Driver IC

ST7567

-

Number of dots

128X64

-

Backlight type

3 LEDS White 3.0V 45mA

-

Interface type

Serial/Parrallel interface

-

Operating temperature

-20 ~ 70

oC

Storage temperature

-30 ~ 80

oC

Pin No.

Symbol

Pin Description

1

PS

Parallel/serial data input select input pin in parallel mode

2

C86

Microprocessor interface select input pin in parallel mode

3

VG

VG is the LCD driving voltage for segment circuits at positive frame

4

XV0

XV0 is the LCD driving voltage for common circuits at positive frame

5

V0

V0 is the LCD driving voltage for common circuits at negative frame

6

VSS

Ground

7

VDD

Power supply（+3.0）

8-15

D7-D0

Data bus

16

RD

Read select signal

17

WR

Write select signal input

18

A0

Data or command select signal input

19

RES

A reset pin.

20

CS

Chip select signal input(low active)
