【MS12864GB01】 128X64 ST7567 Graphic LCD display serial interface LCD Module
1，General Specifications
| Item | Contents | Unit |
| LCD type | FSTN POSITIVE/NEGATIVE | - |
| Viewing direction | 6:00 | O’Clock |

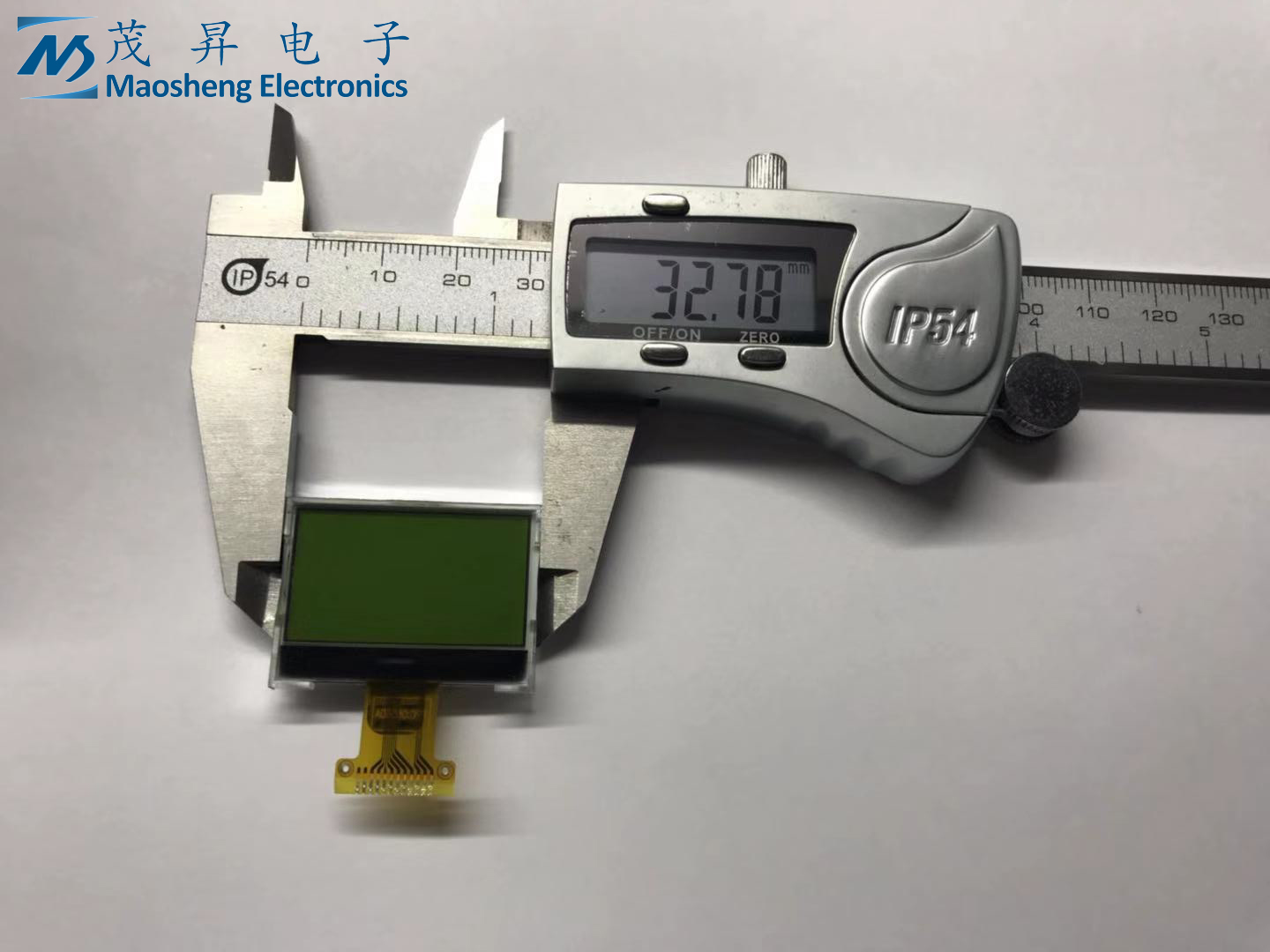

| Module size (HxWxT) | 24.30x32.80x3.60(excluded FPC length) | mm |
| Viewing area (HxW) | 16.35x29.00 | mm |
| Driver IC | ST7567 | - |
| Number of dots | 128X64 | - |
| Backlight type | 2 LEDS White 3.0V 30mA | - |
| Interface type | Serial interface | - |
| Operating temperature | -20 ~ 70 | oC |
| Storage temperature | -30 ~ 80 | oC |
2，Interface Pin Connections
| Pin No. | Symbol | Pin Description |
| 12 | NC | NC |
| 11 | NC | NC |
| 10 | VG | VG is the LCD driving voltage for segment circuits at positive frame |
| 9 | XV0 | XV0 is the LCD driving voltage for common circuits at positive frame |
| 8 | V0 | V0 is the LCD driving voltage for common circuits at negative frame |
| 7 | VSS | Ground |
| 6 | VDD | Power supply（+3.0） |
| 5 | D7/SDA | Serial data input |
| 4 | D6/SCL | Serial clock input |
| 3 | A0 | Data or command select signal input |
| 2 | RES | A reset pin. |
| 1 | CS | Chip select signal input(low active) |
3,Dimensions
