[MS035IL50LA1] 3.5inch TFT 320X480 LCD screen TN/IPS optional with Touch panel
1,General information
MS035IL50LA1 is a color active matrix LCD module incorporating amorphous silicon TFT(Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 320x480 pixels with Resister Touch Panel. This product accords with RoHs environmental criterion.
2，Features
| Item | Content | Unit | Note |
| LCD Type | TFT | / | |
| Viewing direction | ALL/IPS | O’Clock | |
| Module outline | 54.5X84.71X3.6 | mm | |
| Active Area(WxH) | 48.96 x 73.44 | mm | |
| Pixel Size | 153(W) x153(H) | um | |
| Number of Dots | 320 x 480 | dots | |
| Controller IC | ILI9488 | / | |
| Interface Type | MCU or RGB,or SPI | / | |
| F.P.C spec. | 0.5 | mm | |
| Wight | -- | g | |
| Input Voltage | 3.3 | V | |
| Luminance for LCD | 250 | Cd/m2 |
3，Max Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Power Supply voltage |
Vcc |
-0.3 |
4.5 |
V |
|
Input Voltage |
Vin |
-0.3 |
Vcc+0.3 |
V |
|
Operating Temperature |
Top |
-20 |
70 |
℃ |
|
Storage Temperature |
Tstg |
-30 |
80 |
℃ |
|
Operating Humidity |
Hop |
10 |
90% |
RH |
|
Storage Humidity |
Hstg |
10 |
90% |
RH |

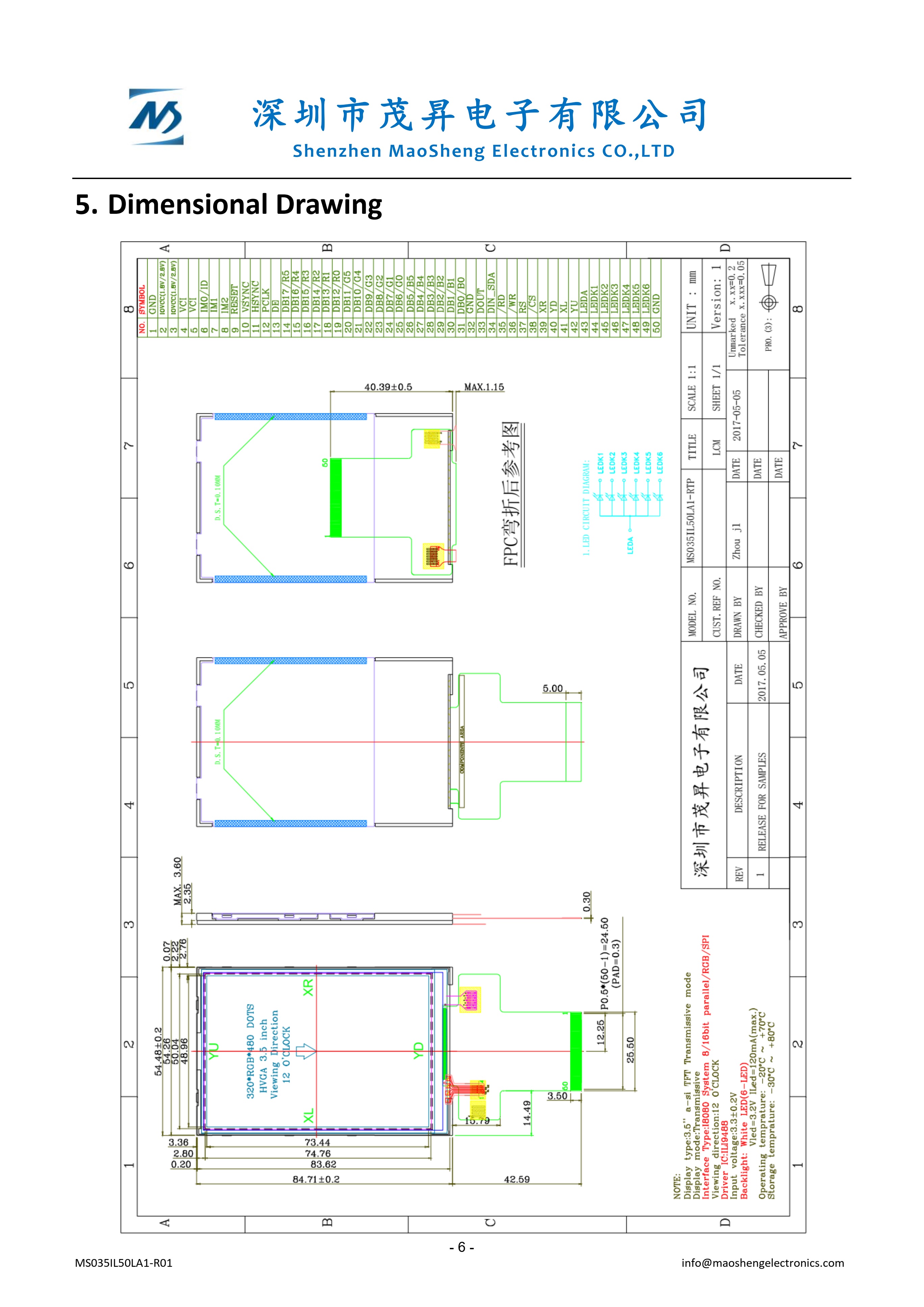

4,Drawings
For more information， pls contact ajel@maoshengelectronics.com or Whatsapp +86 18575525695 .
