[MS121832GQ01] 128x32 COG Dot Matrix Graphic LCD Display Module
128x32 Dot Matrix COG, FSTN, Gray background, Blue Edge lit, bottom (or 6:00) viewing angle, Transflective (positive),
accept the customized modified.
accept the customized modified.
1，Mechanical Specification
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 128*32 Dots | |
| Module dimension | 67.7(w)*29.7(h)*4.0(t) | mm |
| VA display area | 62.16(w)*17.14(h) | mm |
| AA display area | 58.82(w)*14.66(h) | mm |
| Dot size | 0.454(w)*0.224(h) | mm |
| Dot pitch | 0.459(w)*0.229(h) | mm |
| Display mode | Negative or NEGATIVE | |
| LCM type | COG | |
| LCD type | STN(Y/G) FSTN | |
| Reflector | Transmissive or Transflevtive | |
| Viewing direction | 6:00 O’clock | |
| OP. Temp: | -20℃-70℃ | |
| ST. Temp | -30℃-80℃ | |
| Driver | ST7567 | |
| Backlight | WHITE | |
2，Optical Character
| ITEM | SYMBOL | CONDITION | MIN. | TYP. | MAX.. | UNIT |
| Driving Voltage | V | 25℃ | VDD-13.5 | VDD+0.3 | V | |
| Response time | Ton | 25℃ | - | 23 | 400 | ms |
| Toff | 25℃ | - | 243 | 400 | ms | |
| Contrast ration | CR | 25℃ | 3 | 10 | - | |
| Viewing Angle Range | 25℃ | 60 | ||||
| Viewing Angle | θ | 25℃ | 0 | DEG | ||
| Viewing Angle | φ | 25℃ | 90 | |||
| Crosstalk | 25℃ | 1.2 |
3，LED backlight
|
PARAMETER |
MIN. |
TYP. |
MAX |
UNIT |
TEST CONDITION |
NOTE |
|
Current |
|
|
80 |
mA |
|
|
|
Half-Life Time |
|
|
|
|
|
|
|
Input Voltage |
-- |
3.0 |
-- |
V |
|
|
|
Color |
|
BLUE |
|
|
|
|

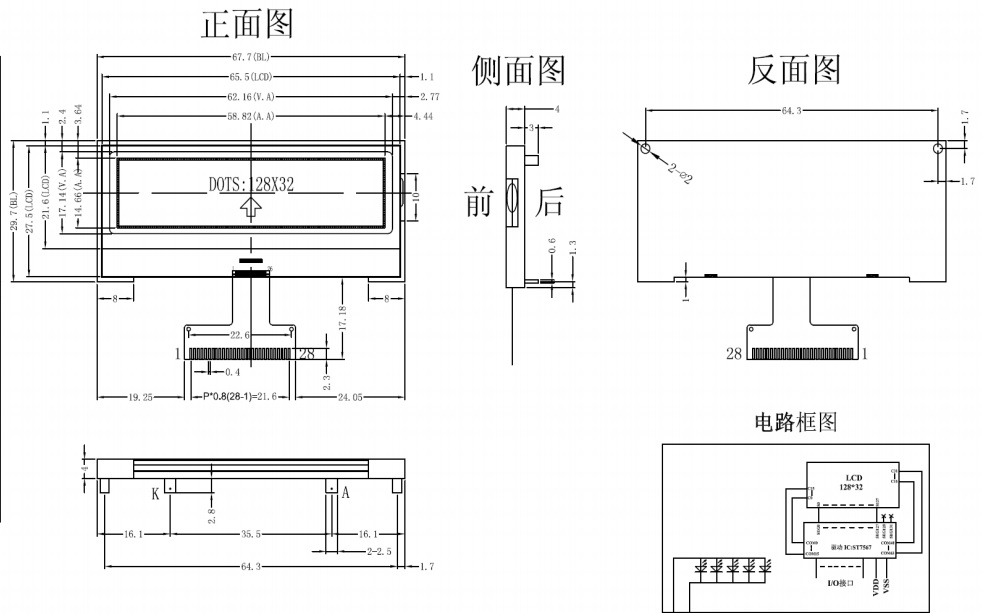

4， Drawing
